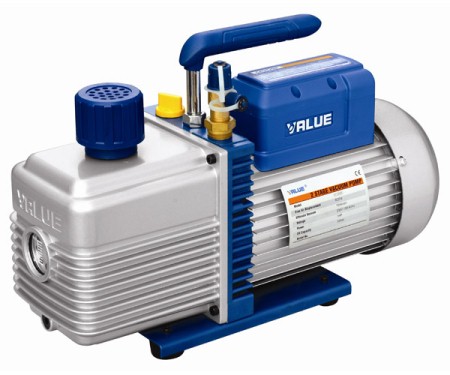

پمپ وکیوم روغنی VALUE

Single Stage Vacuum Pump
Model		VE115N		VE125N		VE135N		VE160N		VE180N
Frequency		50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz
Flow Rate	CFM	1.8	2.0	2.5	3.0	3.5	4.0	6.0	7.0	8.0	9.0
	L/min	51	57	70	84	100	113	170	198	226	254
Ultimate Vacuum	Partial pressure	2Pa		2Pa		2Pa		2Pa		2Pa
	Total pressure	150 micron		150 micron		150 micron		150 micron		150 micron
Motor (HP)		1/4		1/4		1/3		1/2		3/4
Intake Fitting		1/4" Flare		1/4" Flare		1/4" & 3/8" Flare		1/4" & 3/8" Flare		1/4" & 3/8" Flare
Oil Capacity (ml)		250		250		250		415		660
Dimensions (mm)		290*124*224		290*124*224		318*124*234		337*138*244		395*145*257
Net Weight (kg)		6.6		7.1		8.0		10.0		14.7

Dual Stage Vacuum Pump

Model

VE215N

VE225N

VE235N

VE245N

VE260N

VE280N

VE2100N

Frequency

50Hz

60Hz

50Hz

60Hz

50Hz

60Hz

50Hz

60Hz

50Hz

60Hz

50Hz

60Hz

50Hz

60Hz

Flow Rate

CFM

1.5

1.8

2.5

3.0

3.5

4.0

4.5

5.0

6.0

7.0

8.0

9.0

10.0

12.0

L/min

42

50

70

84

100

113

128

142

170

198

226

254

283

340

Ultimate Vacuum

Partial pressure

2*10-1Pa

2*10-1Pa

2*10-1Pa

2*10-1Pa

2*10-1Pa

2*10-1Pa

2*10-1Pa

Total pressure

15 micron

15 micron

15 micron

15 micron

15 micron

15 micron

15 micron

Motor (HP)

1/4

1/3

1/3

1/2

3/4

1

1

Intake Fitting

1/4" Flare

1/4" Flare

1/4" & 3/8" Flare

1/4" & 3/8" Flare

1/4" & 3/8" Flare

1/4" & 3/8" Flare

1/4" & 3/8" Flare

Oil Capacity (ml)

200

200

325

325

460

500

700

Dimensions (mm)

308*124*230

318*124*234

337*138*244

337*138*244

395*145*257

395*145*257

395*145*257

Net Weight (kg)

7.5

8.6

10.5

10.5

15.9

16.3

16.7
